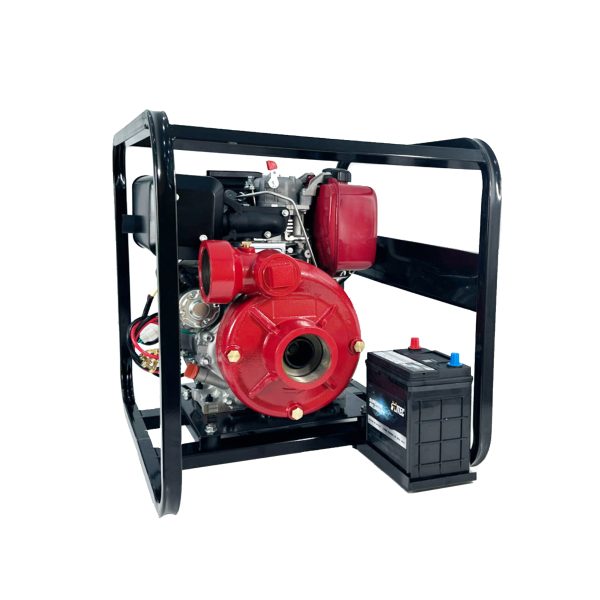

CAST80188 / 80208 3” CAST IRON PUMP KIT ( E-START)

Features:

Specification:
Model :CAST80188
Inlet Size ( mm) :80mm (3″)
Outlet Size (mm) :80mm (3″)
Connection Thread : External pipe thread BSP or NPT
Delivery Quantity :700 L/min
Max. lift head :75 (m)
Impeller :188
Material : Cast Iron
Motor Type:
Engine Model :Diesel 418
Engine Type :Single Cylinder, 4- Stroke, Air Cooled, Double impeller
Combustion System :Direct Injection
Bore x Stroke ( mm) :86×76
Displacement ( cc ) :418
Engine Speed (rpm ) :3000/3600
Power ( H/P ) :10.0
Max. output ( Kw) :6.3/6.9
Rated Output ( Kw ) :5.7/6.3
Fuel Consumption rate (g/kw.h) : ≤278
Starting  Style :Electric

Model :CAST80208
Inlet Size ( mm) :80mm (3″)
Outlet Size (mm) :80mm (3″)
Connection Thread : External pipe thread BSP or NPT
Delivery Quantity :700 L/min
Max. lift head :90 (m)
Impeller :208
Material : Cast Iron
Motor Type:
Engine Model :Diesel 498
Engine Type :Single Cylinder, 4- Stroke, Air Cooled, Double impeller
Combustion System :Direct Injection
Bore x Stroke ( mm) :92×75
Displacement ( cc ) :498
Engine Speed (rpm ) :3000/3600
Power ( H/P ) :13.0
Max. output ( Kw) :7.5/8.0
Rated Output ( Kw ) :7.0/7.5
Fuel Consumption rate (g/kw.h) : ≤280
Starting  Style :Electric
